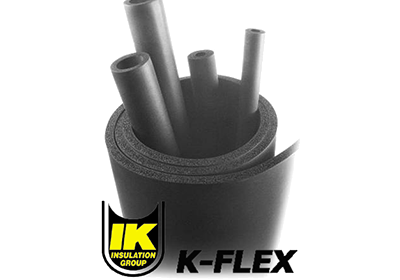

K-FLEX
Thermal & Accoustic insulation
Description:
L’ISOLANTE K-FLEX is an Italian manufacturing company specialising in the production of thermal and acoustic elastomeric insulation materials. The company has production facilities and subsidiary networks around the globe in order to supply their products to a worldwide customer base. Its diversified product range provides solutions for various market sectors, including building, transportation, petrochemical and renewable energy.
A:- Themal insulation
Additional Info:K-FLEX ST is suitable for all applications both civil and industrial that require the use of insulation material, without neglecting the price/quality relationship: refrigeration, air-conditioning, heating and plumbing, tanks, pipe fittings and water ducts.
Available Class 1
Class o
| FEATURES | |||||
|---|---|---|---|---|---|
| TUBES 2M | SHEETS 1M | SHEETS 1 / 5M | |||
| Thickness | Diameter | Standard Thickness | Adhesive Thickness | Standard Thickness | Adhesive Thickness |
| 6,9, 13, 19, 25, 32, 40, 50, 55, 60mm | From 6 to 210mm | 6, 10, 13, 16, 19, 25, 32, 40, 50, 60mm | 6, 10, 13, 16, 19, 25, 32, 40, 50mm | 6 ,10, 13, 16, 19, 25, 32, 40, 50, 60mm | 6, 10, 13, 16, 19, 25, 32, 40, 50mm |
B:- Accoustic insulation
K-Flex, K-Fonik ST GK Smooth elastomeric sound insulation panel in various thicknesses, coupled with a high density elastomeric sheet.
Is ideal for sound insulation of fixed and false walls, ceilings and false ceilings, garages and acoustic cabins, drainage systems, theatres etc, and all types of sound insulation applications.
K-Fonik Open Cells is a thermal-acoustic insulation material, ideal for sound absorption applications. It combines excellent acoustic performance and insulation characteristics. Supplied in formats and thicknesses, based on customer requirements
| Material Type | Flexible electromeric foam |
| Density | K-Fonic open cell 160 > 100 kg/m3 K-Fonic open cell 240 : 240kg/m3 (-20 / + 120kg/m3) |
| Thermal Conductivity | K-Fonic open cell 240 :0,056W(m.k) K-Fonic open cell 160:0,048W(m.k) |
| Fire | FMVSS 302, EN 13501 CS3D0 |
| Temperature | -40oC + 85oC |
| Thickness | From 10 To 350mm |
| Base Colour | Black (#000000) |
| Modulus | 22 ± 3.7(160) - 57.7 ± 8.0 (240) |
| Elongation To Break (%) | 114 ± 33 (160) - 140 ± 47 (240) |
