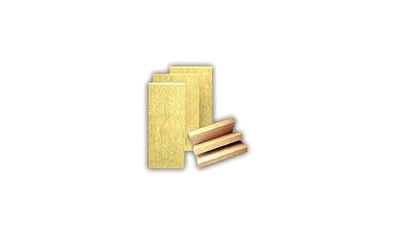

RESIN BONDED ROCKWOOL

Description:

Rockwool is a product of the most recent innovations in insulation materials technology. The production process has been a revelation to the industry.

Rockwool is considered as a high performance material in the thermal insulation, acoustic insulation and fire resistance applications. These products are extensively used for Thermal Insulation & Energy Conservation in Hot & Cold Pipe Lines & Equipment’s like Electro Static Precipitators, Chimney & Boilers etc.

Rockwool commonly used in Fertilizer, Chemical, Thermal Power Station, Refineries, Steel Plants, Cold Storages, Cement Plants, Textile Mills, Railway Coaches, Sugar Mills, Ships etc.

Application

Rockwool Slabs are designed for a wide range of applications, at both high and low service temperatures. It can be used on flat or slightly curved surfaces for thermal and acoustic insulation. They are also suitable for thermal insulation of ducts, large vessels, cavity wall, curtain wall and sandwich panels

Availability

Application
SERVICE TEMPERATURE	-50 to + 750 DEGREE CENTI GRADE
Standard Dimensions	1 X 0.500 & 1.220 X 0.750 M
Thickness - MM	25,30,35,40,45,50,55,60,65,70,75,80,90,100
Density (Kg/M3)	48,64,96,144
Group / Grade	I,II,III,IV
Specification	As per IS:8183
Test Method	As per IS:3144
Max Service Temperature	750°c

Thermal conductivity :

Thermal conductivity varies with the Temperature and Density of insulation as shown in the graph.

Acoustic properties :>

Slabs provide excellent acoustical and noise reduction Co-efficient. Due to high noise reduction co-efficient, they are used in acoustic insulation work for auditoria, theatres, public place and industrial areas where noise reduction is required

Fire Resistance :

Incombustible when tested as per IS : 3144. Melting point of fibre is above 1000 ° C (1825 ° F). Complying with BS - 476 Part 4 and ASTM E -136.

Compression & sound absorbation :

Excellent sound absorption by virtue of its scientific fibre lay pattern which ensures controlled dispersion of air pockets and precise air flow resistance.

Facing :

Slabs are available with, Reinforced aluminium foil, Kraft paper.

Moisture resistance :

SHREEROCK Rockwool Slab are good resistant to vapor, most common salts and chemicals. It is moisture resistant and do not absorb moisture from atmosphere..
