XLPE/Bubble Insulation

XLPE TUBING FOR PIPE

Insulation Tubes are long-lasting closed cell thermal insulators with very low thermal conductivity. The closed-cell cross-linked polyolefin Insulation foam structure controls condensation, has high thermal efficiency, and sound absorption. In addition to the dimensional stability, the insulation tubes have a ‘memory effect’ that enables them to spring back to their original shape.

Hot Water Pipeline

Cold Water Pipeline

Gas &oil pipeline

•  Class “O” Fire rated as per BS 476 PART 6&7
•  Temperature range (from -40 °C to +115 °C)
•   Antibacterial & anti-fungal
•   Sound absorption properties
• Easy and fast to install

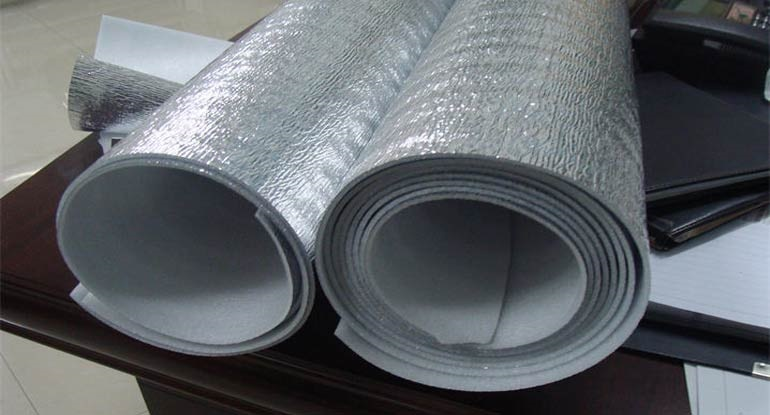

XLPE Sheets and Rolls

XLPE Sheets and Rolls are made from closed cell cross-linked polyolefin foam. Featuring excellent condensation control, long term thermal blocking and sound absorption properties, the XLPE foam sheets and rolls come as a standard sandwich product composed of foam, alupet foil, and self-adhesive backing. Other combinations include plain foam, foam with alupet foil or foam with self-adhesive backing. The foil and foam are available in different colors above and beyond standard gray foam and silver foil to suit the needs of customers.

Product :Closed-cell crosslinked polyolefin foam with alupet foil & self-adhesive backing

Density: 25kg/m³

Thickness: 6mm, 9mm, 13mm, 16mm, 19mm, 25mm

Diameter: 1.2m

Length: Rolls: 25m (any length possible)

Color: Gray/ black/ peach/ red/ green/ blue/ white with silver foil

•  Large diameter pipes (where tubes can’t be used; sheeting is used)
•  Ventilation ducts
•   Tanks, reservoirs
•   Sound absorption properties
• Easy and fast to install

•  Fire rated “CLASS O” as per BS 476 Parts 6 & 7
•  Very low water vapor permeance (0 perms)
•   Water tight due to the pre-applied alupet foil
•   High thermal efficiency (λ24 ˚C = 0.034 W/mK; λ46 ˚C = 0.037 W/mK)
• Wide temperature range (from -40 ˚C to +115 ˚C)
•  Antibacterial & antifungal
•  Environmental friendly – ODP = 0 and GWP < 5
•   Very low VOC emission level ( < 4 µg/m²/hr in 24 hours)
•   Good mechanical resistance
• Sound absorption properties
• Easy and fast to install
